Areas
- Building Area Size: 24,283 m² (semi-gross)
- Typical Floor Size: 1,101 m² (semi-gross)
Physical Floors
- Lobby & Mezzanine
- 19 full office floors + 4 penthouse floors
- Parking: 3 basement levels, 1 lower ground parking, surface parking
Finishes

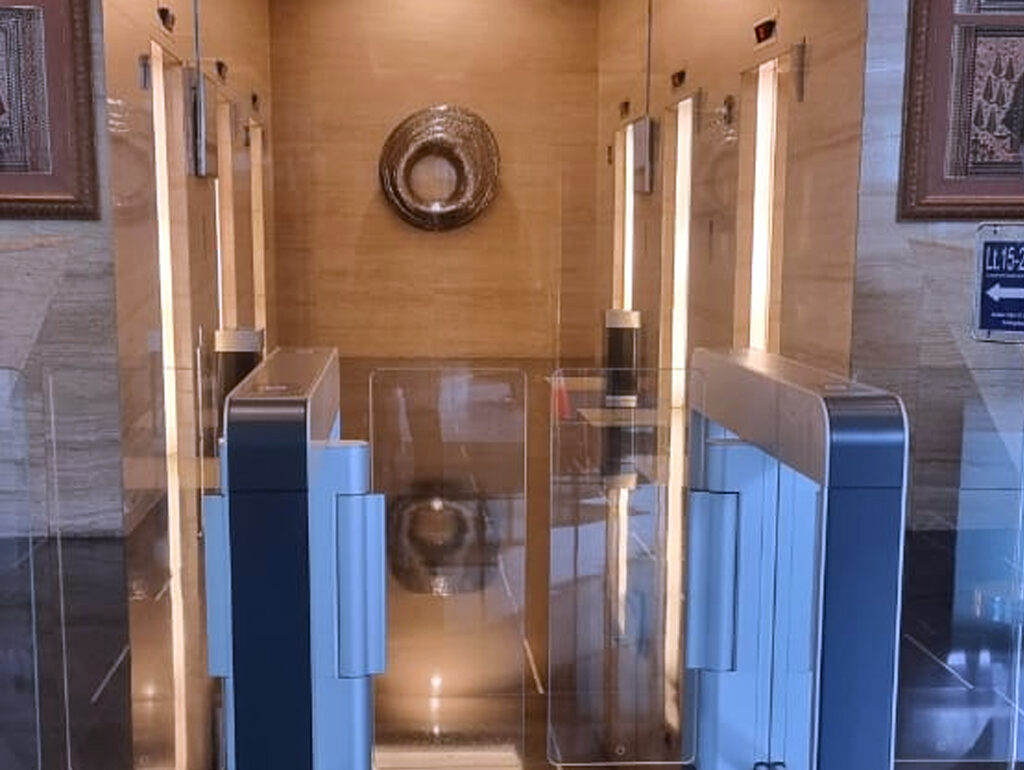

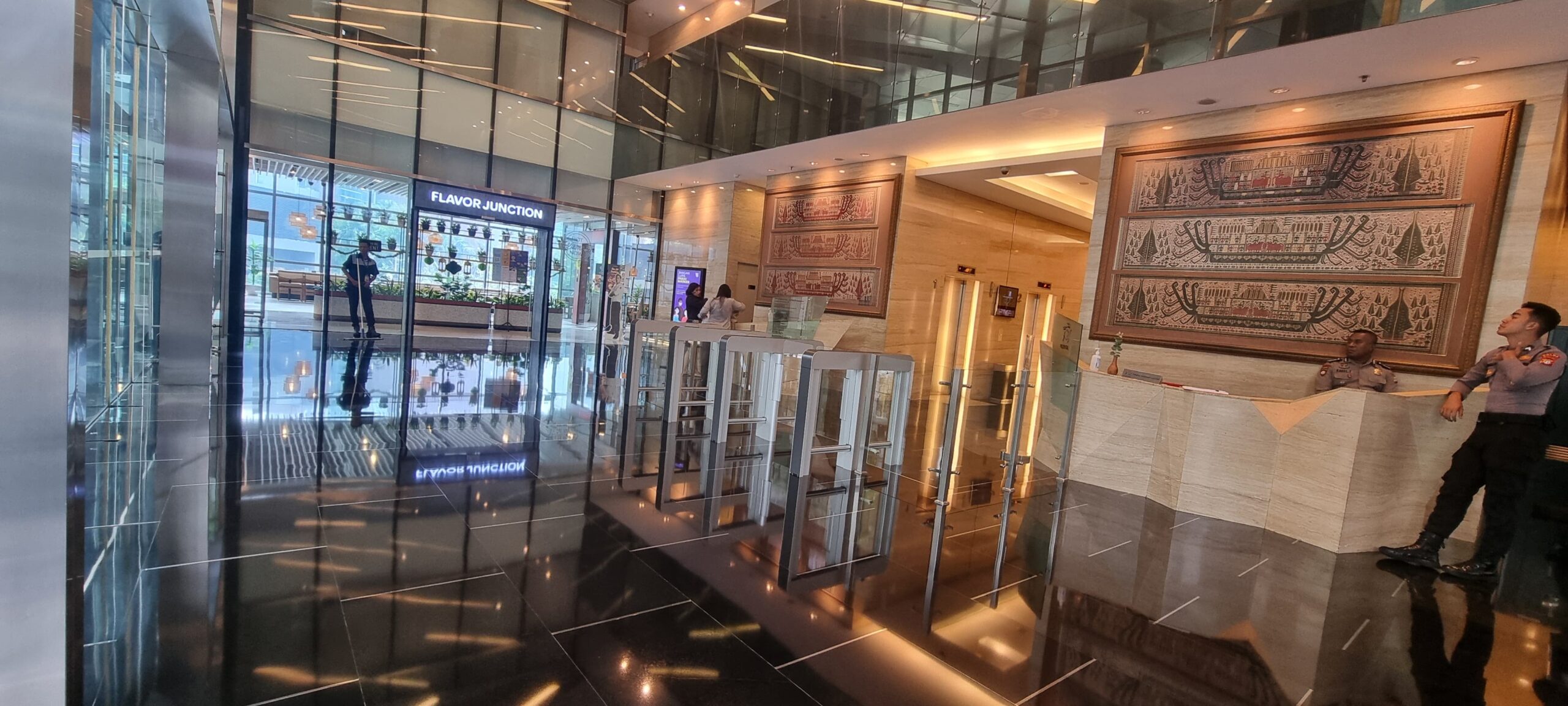

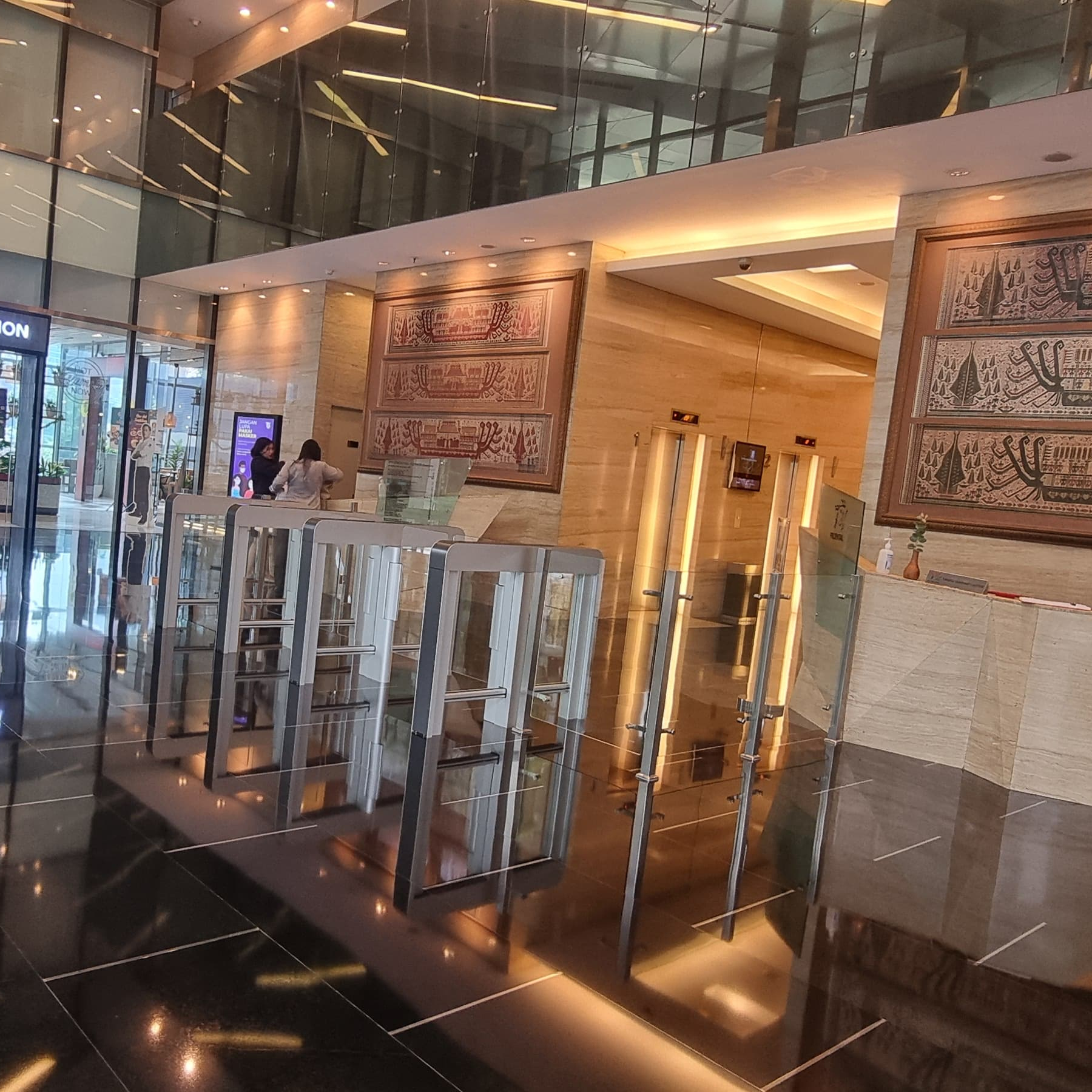

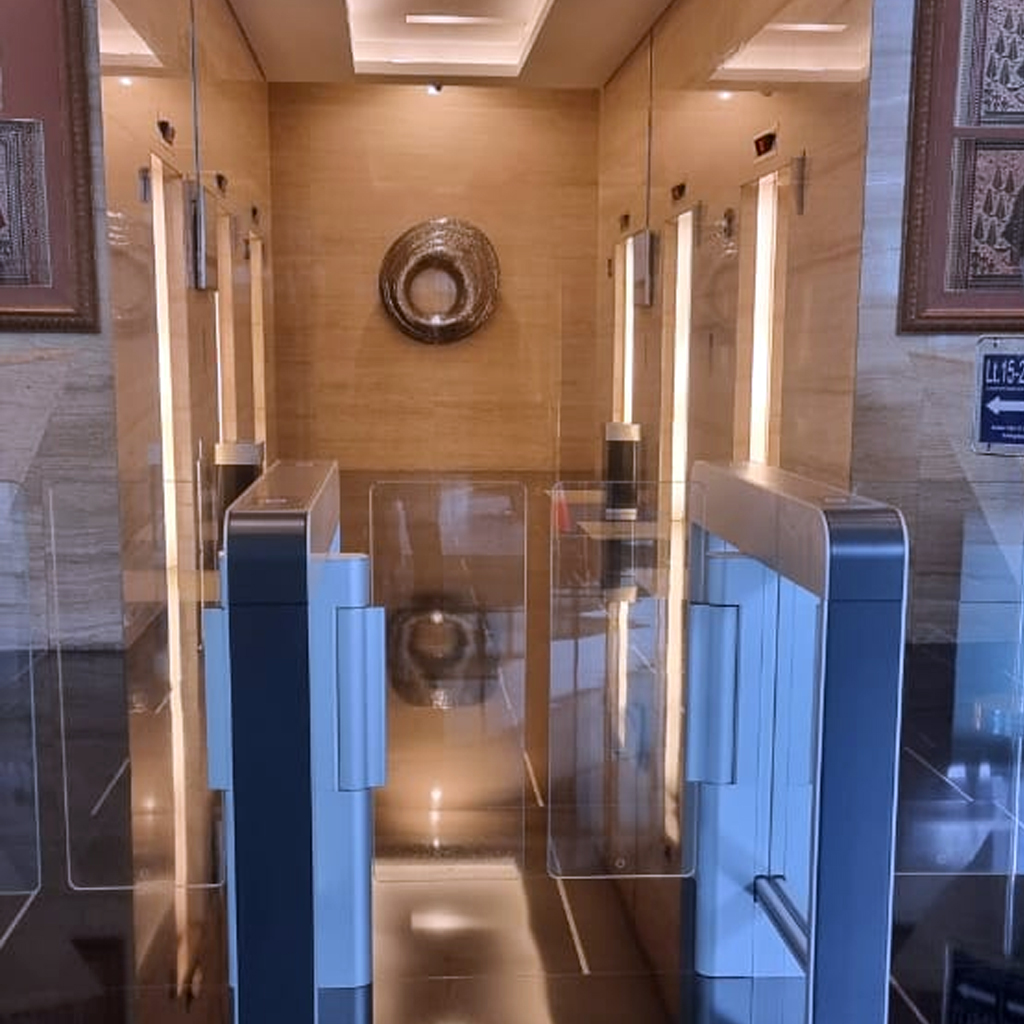

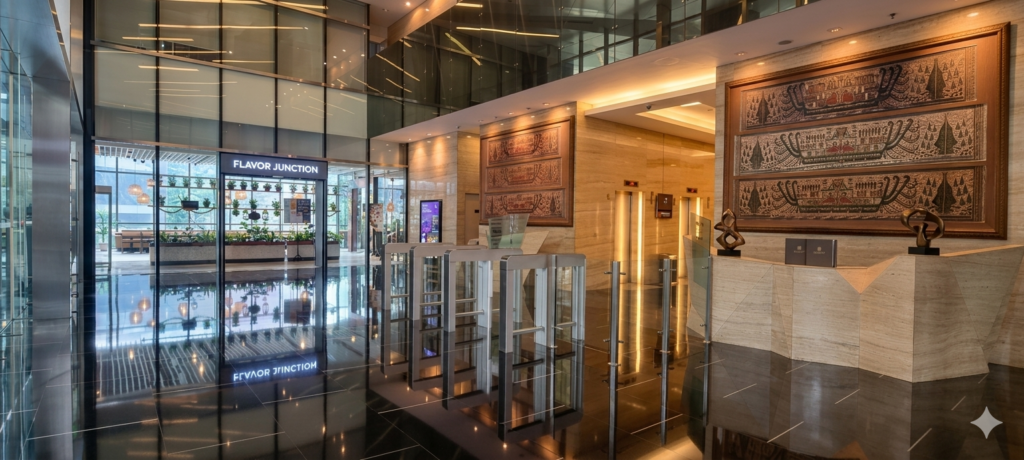

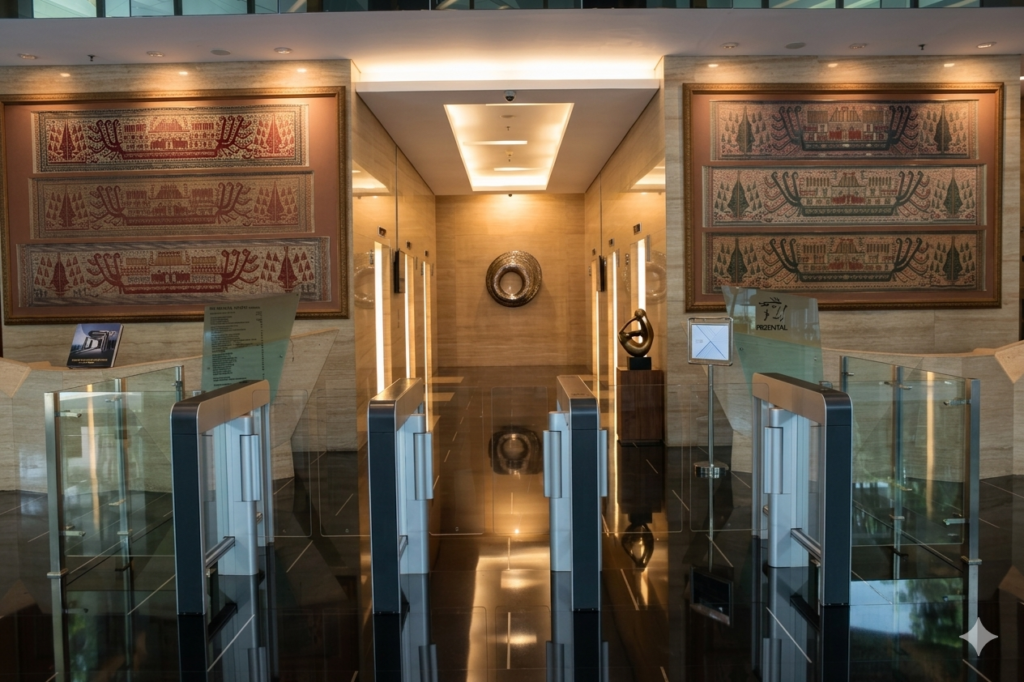

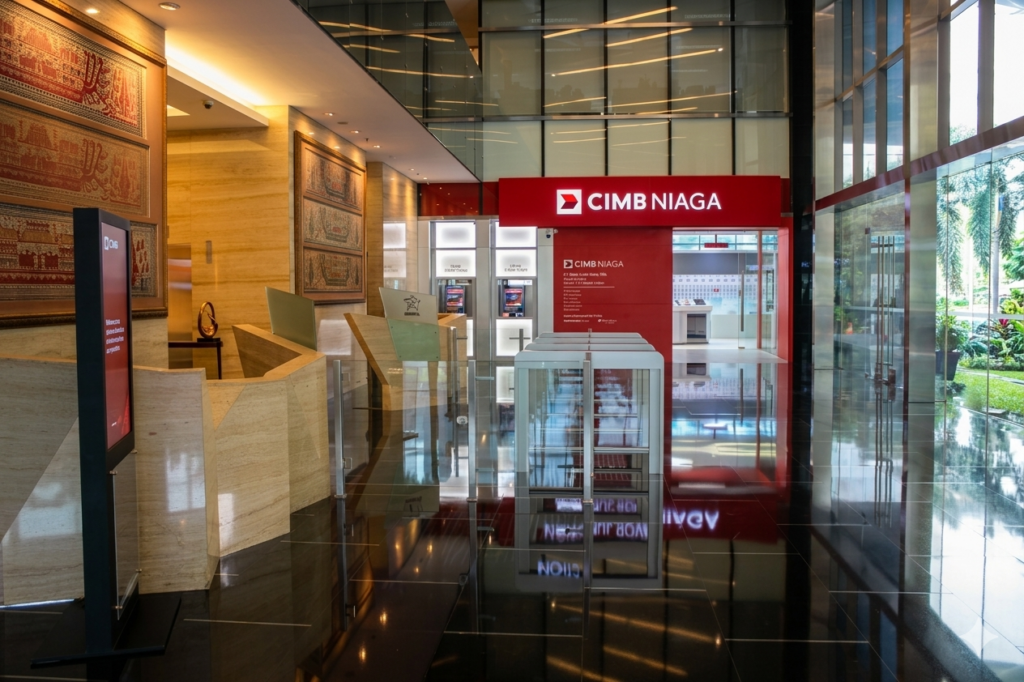

- Main Lobby: Granite & Travertine

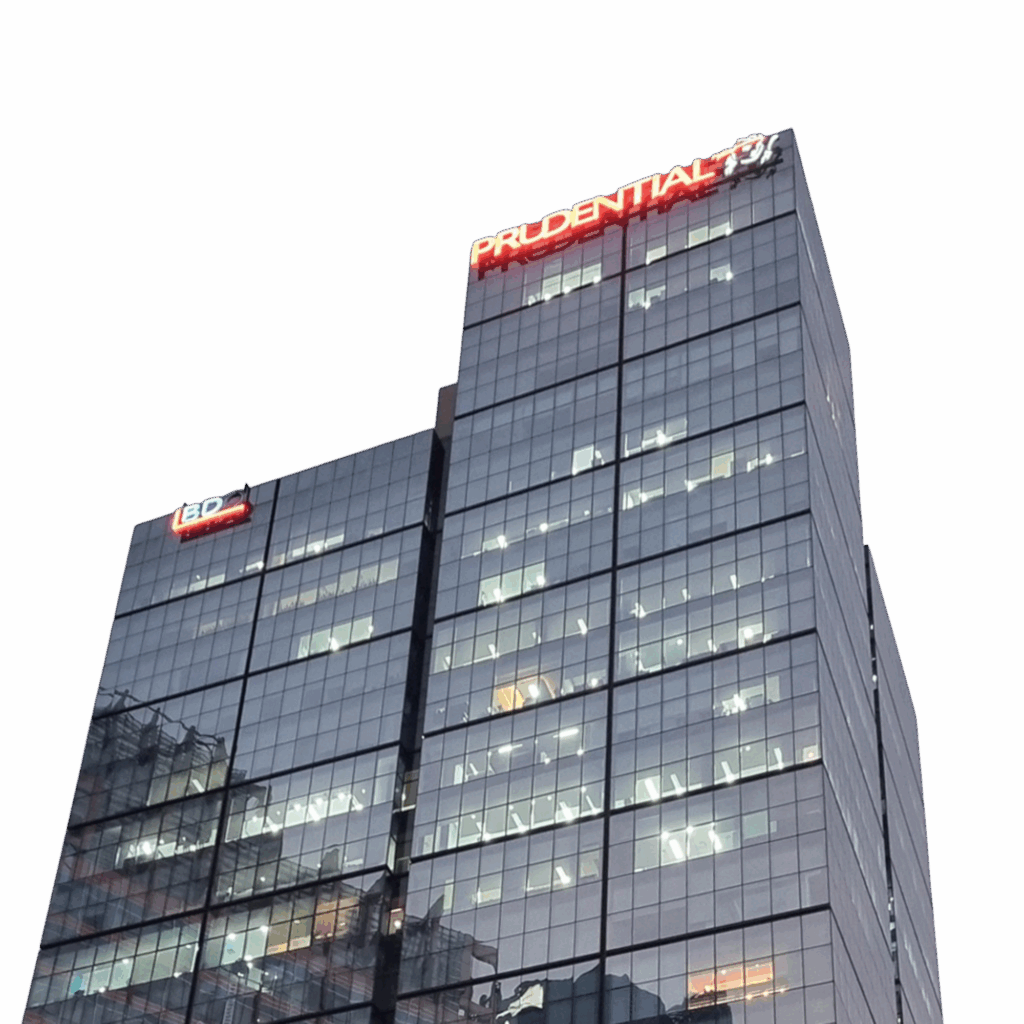

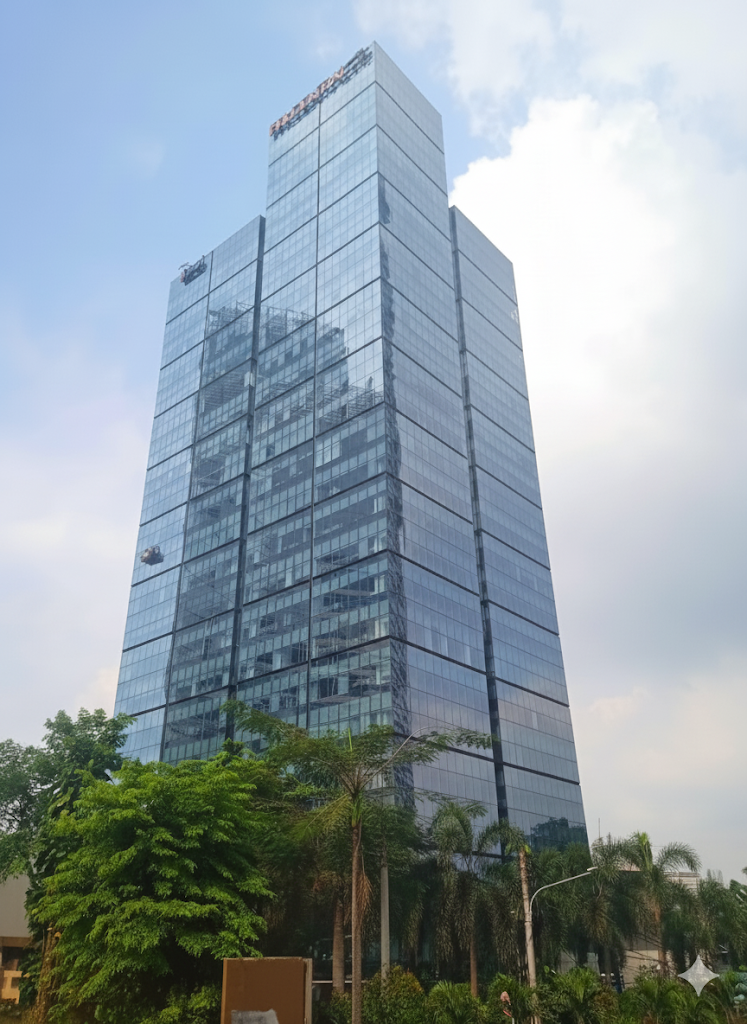

- External Walls: Fully-unitized curtain wall with laminated glass
- Tenant Partition: Gypsum board with glasswool insulation & wire mesh
- Flooring: Bare concrete, trowel-finished
- Ceiling: Grid system with acoustic tiles 60×120 cm
Lifts
- Typical (GF–23rd): 6 passenger lifts, up to 24 pax (1,600 kg), 2.5 m/s
- Upper/Penthouse (25th–28th): 1 passenger lift, 15 pax (1,000 kg), 1.5 m/s
- Service Lift (LG–28th): 1 unit (shared shaft), finish aligned with passenger lifts
- Car-parking Lift: 1 unit, 15 pax (1,000 kg), 1.5 m/s
- Manufacturer: SIGMA, Korea
Dimensions & Heights
- Typical Office Floor: 2.8 m to underside of suspended ceiling (≈ 4.0 m slab-to-slab)
- Service-core to External Wall: 9.5–10 m (typical)
- Floor Loading (Office): 250 kg/m²
Power & Lighting
- Main supply from PLN
- Emergency backup: Diesel generators 2 × 1,500 kVA
Air Conditioning
- Daikin VRV III (R410A)
- Highly flexible & energy-efficient, 4–8 independent zones
Telecommunications
- ±750 pre-installed direct lines
- Fiber-optic broadband (multiple providers)
- Ample rooftop & riser space for special comms requirements
Facilities
- Executive toilet & pantry on each floor
- Cellular reception antennas
- High-speed internet access, fiber-ready
Building Automation (BAS)
A fully integrated BAS supervises mechanical & electrical systems (fire & safety, lighting, air-conditioning) for energy and cost savings.
Fire & Safety
Fire alarm & detection integrated with BAS (heat & smoke detectors, alarm bells, sprinklers, hydrants), backed by generators and aligned with NFPA & DKI regulations.
